Bonnell 775 MX.

Jumps, skids, shreds, downhills and uphills. Conquer the wild with the Bonnell 775 MX. Let 6000 watts and 280nm of torque carry you on your adventures. If you can see it, you can ride it.

Bonnell now available in Aotearoa New Zealand.
Free shipping when you pre-order today.

BONNELL 775 MX

BONNELL 775 AM

BONNELL 775 AM TOURING

Slide 1

New

overview

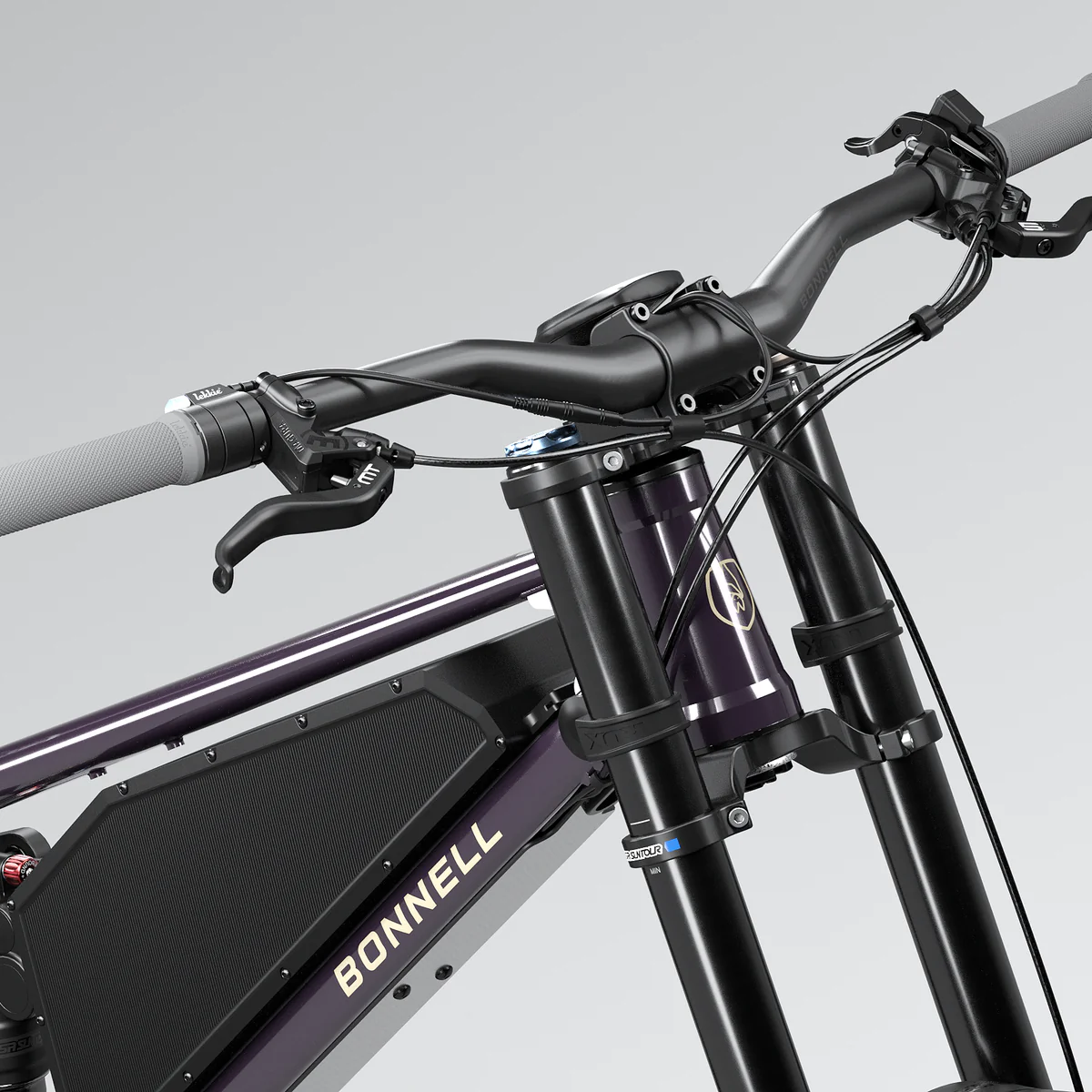

775 MX

Meet your off-road sidekick: a powerhouse that fuses the nimble precision of a downhill mountain bike with the raw power of a lightweight dirt bike. It’s ready for full-on trail domination yet light enough for hassle-free transport. Whether you’re a weekend warrior or a seasoned shredder, this ride delivers unparalleled off-road excitement and redefines what’s possible on two wheels.

NEW ZEALAND

Intended use: Off-road
Front travel: 200
Rear travel: 170

OVERVIEW

POWER: 6Kw / 280nm
RANGE: Use yo legs
BATTERY: 1300Wh
WEIGHT: 34Kg

Slide 2

SPECS:

Motor

CYC X1 Pro Gen 4
280 Nm / 6,000 watts

Frame

4130 chromoly front triangle; 6061 forged aluminum chain stay

Wheels

27.5″ Rear
29″ Front

Battery

A65 series
65V
1300Wh

Slide 3

More Numbers:

Forks

Suntour Rux
38 RC+,
tapered 1″1/8-1.5″, 29″

Rear Suspension

Voro Coil
Trunnion 205*65

Throttle

Lekkie pacemaker full twist throttle

controller

CYC X1 Pro

Display

CYC Intuition integrated smart display

Battery

CYC A65 Series
1300 Wh (
~17 lbs, 7.6 kg)

Slide 1

New

overview

775 AM

The 775 AM isn’t just a bike, it’s a shapeshifter. Built for every kind of rider—from first-timers to full-on trail junkies—it combines modern geometry with modular design and progressive suspension to handle any terrain you throw at it.

NEW ZEALAND

OVERVIEW

POWER: 1200w / 110Nm
RANGE: 30 – 70km
BATTERY: 1300Wh
WEIGHT: 25Kg

Slide 2

SPECS:

775 AM Spec:

Motor

775 AM Photon
1,200W
110Nm

Frame

durable powder coated 775 Frame

Wheels

27.5″ rear
29″ front

Speed

25km/h on throttle
45km/h on Pedal Assist
(when unlocked in App)

Slide 3

More Numbers:

Forks

Suntour Durolux 36X RC+ on S/M, Durolux 38X RC+ on L/XL, E-bike rated, tapered 1″1/8-1.5″, 29″ 160mm travel

Rear suspension

Suntour TriAir 3CR Bonnell AM custom tune.

Throttle

thumb throttle

controller

CYC Photon

Display

CYC Intuition integrated smart display

Battery

CYC A-Series quick connect 520Wh or 780Wh

Slide 1

New

overview

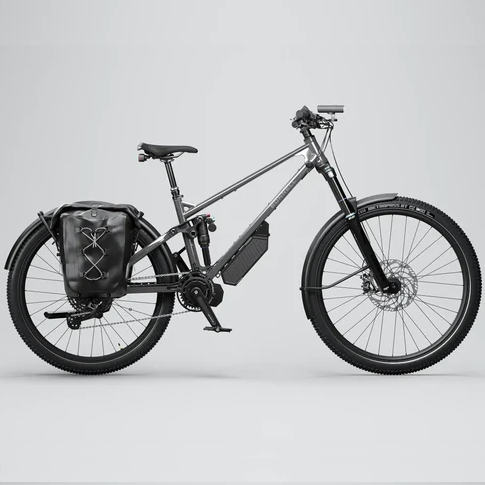

775 AM Touring

A city-savvy bike that’s ready for anything, the 775 AM Touring is all about fuss-free fun. Built for smooth commutes, quick errands, and mountain escapes, it blends an efficient urban design with features that turn what’s everyday into something epic.

NEW ZEALAND

INTENDED USE: Trail + Commuter
FRONT TRAVEL: 160
REAR TRAVEL: 150

OVERVIEW

POWER: 1200W / 110Nm
RANGE: 30 – 70km
BATTERY: 1300Wh
WEIGHT: 34Kg

Slide 2

SPECS:

775AM touring specs:

Motor

775 AM Photon
1,200W
110Nm

Frame

durable powder coated 775 Frame

Wheels

27.5″ rear
29″ front

Speed

25km/h on throttle
45km/h on Pedal Assist
(when unlocked in App)

Slide 3

More Numbers:

Forks

Suntour Durolux 36X RC+ on S/M, Durolux 38X RC+ on L/XL, E-bike rated, tapered 1″1/8-1.5″, 29″ 160mm travel

Rear suspension

Suntour TriAir 3CR Bonnell AM custom tune.

Throttle

thumb throttle

controller

CYC Photon

Display

CYC Intuition integrated smart display

Lunch

CYC A-Series quick connect 520Wh or 780Wh
